Arduino Mega 2560 je mikrokrmilnik, ki se pogosto uporablja za večje projekte avtomatizacije in robotike. Ima več pomnilnika in več vhodno-izhodnih (I/O) pinov kot manjši Arduino mikrokontrolerji, kar omogoča večjo zmogljivost in kompleksnost projektov.
Arduino Mega 2560 prav tako praviloma uporablja programsko okolje Arduino IDE, ki omogoča enostavno programiranje in povezovanje z različnimi senzorji in napravami. Programsko okolje vključuje jezik C in knjižnice, ki omogočajo komunikacijo z različnimi vrstami senzorjev in naprav.
Mikrokrmilnik ima 54 digitalnih vhodno-izhodnih pinov, ki lahko delujejo kot vhodi za senzorje ali kot izhodi za naprave, kot so LED diode ali motorji. Ima tudi 16 analognih vhodov, ki lahko zaznavajo različne stopnje napetosti in jih pretvorijo v digitalne vrednosti.
Arduino Mega 2560 lahko deluje na napetosti od 6 do 20 voltov in ima integriran USB vmesnik za povezavo z računalnikom. To omogoča enostavno programiranje in nalaganje programske kode ter prenos podatkov med mikrokrmilnikom in računalnikom.
Arduino UNO | Arduino NANO | Arduino MEGA | |
Mikrokrmilnik | Atmel AVR ATmega328P | Atmel AVR ATmega328P | Atmel AVR ATmega2560 |
Delovna napetost | 5V | 5V | 5V |
Zunanje napajanje | 7-12Vdc | 7-12Vdc | 7-12Vdc |
Spomin FLASH | 32kB (2KB bootloader) | 32kB (2KB bootloader) | 256KB (8KB bootloader) |
Spomin SRAM | 2KB | 2KB | 8KB |
EEPROM | 1KB | 1KB | 4KB |
Hitrost takta | 16MHz | 16MHz | 16MHz |

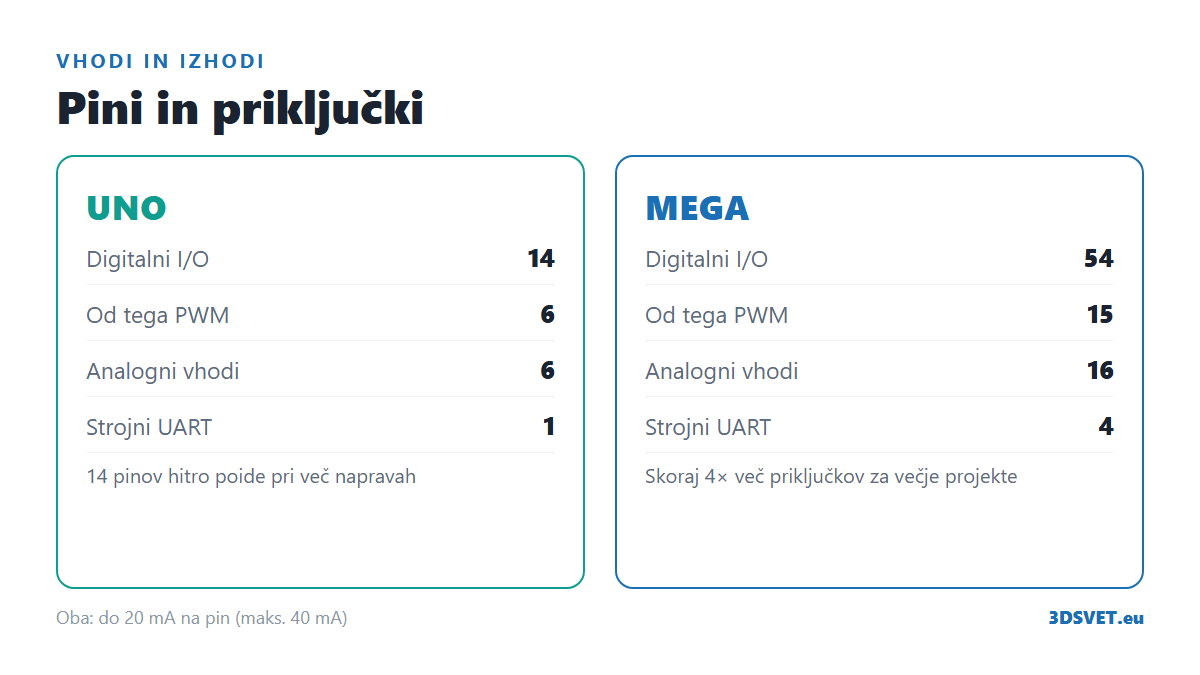

Digitalni I/O | 14 | 22 | 54 |
od tega PWM | 6 | 6 | 15 |
Analogni vhodi | 6 | 8 | 16 |
USB povezljivost | Da | Da | Da |
DC tok na I/O | 20mA | 40mA | 20mA |

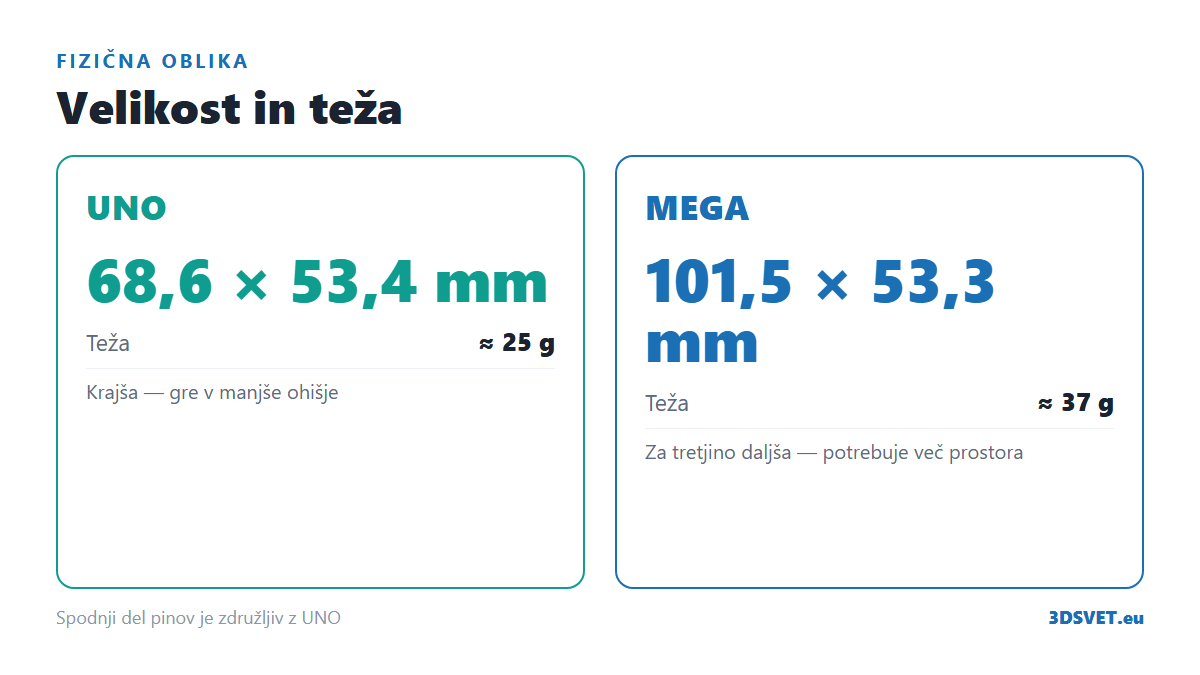

Velikost PCB | 53.4 x 68.6 mm | 18 x 45 mm | 53.3 x 101.52 mm |
Teža | 25g | 7g | 37g |
Mikrokrmilnik Atmega2560 PDF: ATmega2560
Elektronska shema R3 verzija PDF: povezava
Vsak od 54 digitalnih pinov na Mega lahko uporabljamo kot vhod ali izhod z uporabo funkcij pinMode (), digitalWrite () in digitalRead (). Delujejo pri napetosti 5 voltov. Vsak pin lahko zagotavlja ali prejema 20 mA kot priporočeno delovno stanje in ima notranji odpornik pull-up (privzeto izključen) 20-50 k ohmov. Maksimalna vrednost, ki je ne smemo preseči, je 40mA, da se izognemo trajni škodi mikrokontrolerja.
Poleg tega imajo nekateri pinovi specializirane funkcije:
Plošča Mega 2560 ima veliko možnosti za komunikacijo s računalnikom, drugo ploščo ali drugimi mikrokontrolerji. ATmega2560 nudi štiri strojne UART-e za serijsko komunikacijo TTL (5V). Na plošči je ATmega16U2 (na revizijah 1 in 2 plošč ATmega 8U2) ki preko USB prenaša enega od teh in zagotavlja virtualni com vrata za programsko opremo na računalniku (računalniki z okoljem Windows bodo potrebovali datoteko .inf, vendar bodo računalniki OSX in Linux ploščo avtomatično prepoznali kot vrata COM). Programsko okolje Arduino (IDE) vključuje serijski monitor, ki omogoča preprosto pošiljanje in prejemanje besedilnih podatkov med ploščo in računalnikom. LED diode RX in TX na plošči bodo utripale, ko se podatki prenašajo preko čipa ATmega8U2/ATmega16U2 in USB povezave s računalnikom (ne pa za serijsko komunikacijo na pinih 0 in 1).
Knjižnica SoftwareSerial omogoča serijsko komunikacijo na katerikoli od digitalnih pinov Mega 2560.
Mega 2560 tudi podpira komunikacijo TWI in SPI. Programsko okolje Arduino (IDE) vključuje knjižnico Wire za poenostavitev uporabe TWI vodov; glej dokumentacijo za podrobnosti. Za komunikacijo SPI uporabite knjižnico SPI.
